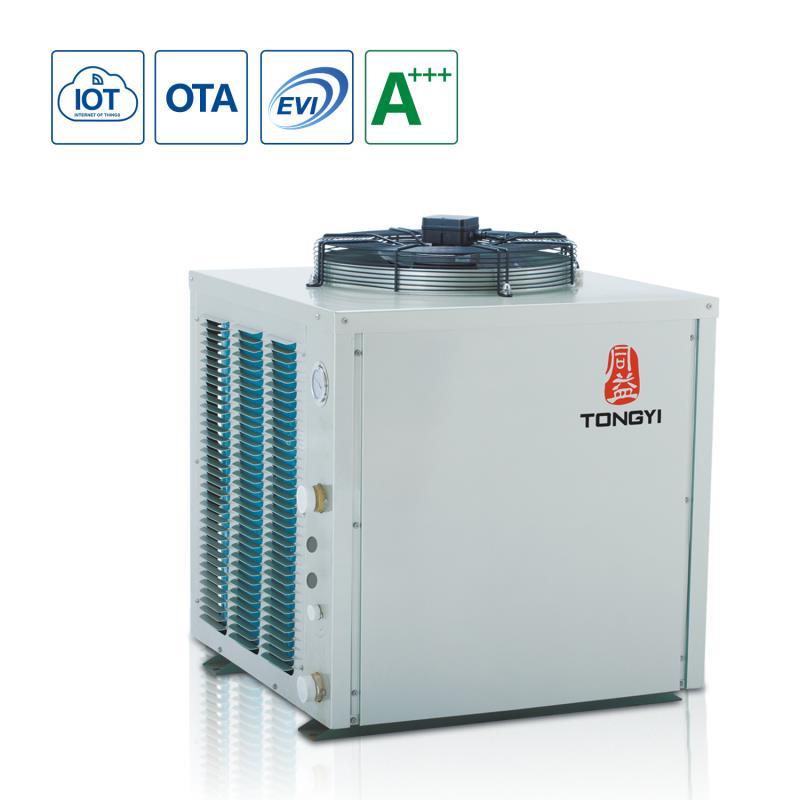

Commercial Swimming Pool Heat Pump

TONGYI Commercial Swimming Pool Heat Pump use Titanium tube heat exchange for pool heating. Especially for commercial pool heating and cooling application, which commits to a fast and stable pool temperature for users on various occasions.
Description Specification Review
Description

TONGYI Commercial Swimming Pool Heat Pump use Titanium tube heat exchange for pool heating. Especially for commercial pool heating and cooling application, which commits to a fast and stable pool temperature for users on various occasions, such as swimming pool, SPA, SPRING, etc.


Capacity Range:

5KW, 10KW,20KW,40KW,80KW

Key Features

Copeland scroll compressor

World-famous scroll compressor with low energy consumption and high energy efficiency output, which effectively shortens the heating water time and double extends the useful life of the unit.

TONGYI heat pump can increase over 20% heating capacity even though it works under severe weather.

Copeland EVI scroll compressor

Titanium tube heat exchange

Titanium tube heat exchange

Multi-protections

The system runs safely, steadily, and reliably thanks to our full protection: high-temperature protection, compressor overload & overheat protection, power phase sequence & over/under voltage protection, etc.

Multi-protections

EEV, precise flow control

Wide working temperature range, faster and more accurate refrigerant flow control than capillary and mechanical expansion valve. Best choice to achieve higher efficiency and energy-saving.

EEV, precise flow control

Auto-defrosting program and anti-freeze

Intelligent defrosting technology, which can determine the time of defrosting according to the operating conditions of the unit (running time, exhaust temperature), ambient temperature, and thickness of frost, so as to achieve intelligent defrosting when it is necessary, which greatly shortens the defrosting time by more than 20% and ensures the high heating capacity.

Auto-defrosting program and anti-freeze

Flexible Installation

The Cuboid shape module design of the unit makes the project installation save more space.

Flexible Installation

pannel control

Remote control

BMS contact point / Modbus support(with RS485) to Amazon cloud, realize remote control function optional



IoT

With IoT technology, we can check the heat pump status remotely. When there is fault occurs, it is easy for us to check the product information and give immediate support to our customers.

With OTA(update over air) technology, If there is an error that happens on the software, we can do the remote service by updating the software online. And when the software has a new version with the function upgraded, as long as we got your permission, we can update the software remotely.

IOT

High-performance FM

It uses an outer rotor axial flow silent fan with a five-leaf balanced aluminum alloy wind wheel. It has the advantages of corrosion resistance, large air volume, and low noise.

High-performance FM

Patent louvered casing

TONGYI’s patent louvered casing can be better for waterproof, windproof and dust-proof. Patent no.:CN201030670236.9.

Patent louvered casing

Unique hydrophilic fin coil heat exchanger

Large amount for air inletAir exchangers(fin-coil)with hydrophilic coating are strongly anti-corrosive and perform at high efficiency.

Unique hydrophilic fin coil heat exchanger

Overview

Overview

User

SOFITELIHGHiltonSheratonMARRIOTTBeijing 2022


Quality Control

Quality is taken into account since product design through the whole product life-cycle. With professional design procedure, simulation, and over 30 type tests, from incoming parts inspection to out-going heat pump inspection during production.

Quality Control

R&D

With the Research center, product design department, and product engineering team, we have technical talents with over 20+ years in heat pumps, the development is managed by PLM(Production Lifecycle Management system) with the design procedure.

R&D

Certificate

Certificate

Specification

Model

TAHP26S

TAHP48S

TAHP120S

Type

On/Off

On/Off

On/Off

Advised Pool Volume

m3

40~90

80~170

150~300

Operating Air Temperature

-15~43

Performance ConditionAir 24/Water 26/Humid. 62.8%

Heating Capacity

kW

26

48

120

Consumed Power

kW

4.9

9.3

21

COP

/

5.3

5.2

5.7

Performance ConditionAir 15/Water 26/Humid. 70.9%

Heating Capacity

kW

21.1

41.8

103

Consumed Power

kW

4.7

8.9

20.5

COP

/

4.5

4.7

5

Power Supply, Volts/Ph/Hz

50 Hz

380/3/50

60 Hz

380/3/60

Refrigerant

R410A

Noise Level, dB

62

62

70

Cabinet

Powder Painted Galvanized Steel(Option: SUS 304)

IP Rating (Enclosure Class)

IPX4

Safety Device

Compressor Thermal Overload, High & Low Water Temp,High Discharge Temp, Sensor Probe Fault

Throttle Type

Electronic Expansion Valve

Net Wt./Approx. Shipping Wt., kg

120/141

325/340

650/685

COMPRESSOR









Quantity/Type

1

2

2

Type

/

Scroll

Scroll

Scroll

Brand

/

Copeland

Copeland

Copeland

Volts/Phase/Hertz

50 Hz

380/3/50

380/3/50

380/3/50

60 Hz

380/3/60

380/3/60

380/3/60

EVAPORATOR COILS









Fin Type/Tube Type

Hydrophilic  Aluminum Fins/Internal Threaded Tube

CONDENSER









Type

Titanium

Water Connection

DN40

DN50

DN75

Max. Outlet Water Temperature,

45

45

45

Dimensions (Lx Wx H), mm

859x 829x 988

1503x723x 1208

2200x 1005x 1840
